Executive Summary
Section titled “Executive Summary”This report surveys tools and techniques for visualizing complex causal diagrams, with applications to our AI Transition Model visualization. Key findings:
| Area | Key Insight | Relevance |
|---|---|---|
| Progressive disclosure | Start with 20-50 nodes, expand on demand | Already implemented via view levels |
| Semantic zoom | Detail level changes with zoom | Potential enhancement |
| Focus+context | Highlight paths while dimming irrelevant nodes | Implemented via path highlighting |
| System dynamics tools | Vensim, STELLA handle feedback loops well | DAG limitation noted |
| Academic research | Visual analytics for causal reasoning is active area | Multiple relevant papers |
Tools Survey
Section titled “Tools Survey”DAGitty - Browser-Based Causal Diagram Editor
Section titled “DAGitty - Browser-Based Causal Diagram Editor”URL: dagitty.net
DAGitty is a browser-based tool for creating, editing, and analyzing causal diagrams. Originally developed for epidemiology and statistics.
| Feature | Description |
|---|---|
| Graphical editor | Click to add nodes, drag to connect |
| Testable implications | Auto-generates statistical independence assertions |
| Adjustment sets | Identifies confounders for causal inference |
| Export | SVG, PNG, LaTeX/TikZ |
Example DAGitty diagram:
Vensim - System Dynamics Modeling
Section titled “Vensim - System Dynamics Modeling”URL: vensim.com
Vensim is the industry standard for system dynamics modeling, supporting both causal loop diagrams (CLDs) and stock-flow models.
| Feature | Description |
|---|---|
| Causal Tracing® | Click any variable to see full causal chain |
| Feedback loops | First-class support for reinforcing/balancing loops |
| Simulation | Run models forward in time |
| Large models | Handles 1000+ variable models |
| SyntheSim | Real-time simulation during editing |
Key insight: Vensim’s Causal Tracing® feature (highlighting upstream/downstream paths) directly inspired our path highlighting implementation.
STELLA - Systems Thinking for Education
Section titled “STELLA - Systems Thinking for Education”URL: iseesystems.com
STELLA (from isee systems) focuses on accessible systems thinking, with strong visualization for feedback loops.
| Feature | Description |
|---|---|
| Causal Loop Diagrams | Polarity indicators (+/-) on edges |
| Loop identification | Auto-detects reinforcing vs balancing loops |
| Storytelling | Step-through presentations of model behavior |
| Web publishing | Share interactive models online |
KeyLines - Commercial Graph Visualization
Section titled “KeyLines - Commercial Graph Visualization”URL: cambridge-intelligence.com/keylines
KeyLines is a commercial JavaScript SDK for graph visualization, used in intelligence analysis and fraud detection.
| Feature | Description |
|---|---|
| Time-based visualization | Animate graph changes over time |
| Clustering | Auto-group related nodes |
| Link analysis | Find shortest paths, betweenness |
| Scale | Optimized for 10K+ nodes |
Demo gallery: cambridge-intelligence.com/demos
yFiles - Enterprise Graph SDK
Section titled “yFiles - Enterprise Graph SDK”URL: yworks.com/products/yfiles
yFiles is a comprehensive graph visualization SDK supporting multiple platforms.
| Feature | Description |
|---|---|
| Large graphs | Handles 100K+ nodes with WebGL rendering |
| Organic layout | Natural-looking layouts for complex graphs |
| Incremental layout | Smooth animations when graph changes |
| Grouping | Nested/compound node support |
Relevant demo: yFiles Knowledge Graph Demo - Shows hierarchical ownership relationships similar to our causal chains.
Kumu - Systems Mapping Platform
Section titled “Kumu - Systems Mapping Platform”URL: kumu.io
Kumu is a web-based platform specifically designed for systems mapping and stakeholder analysis.
| Feature | Description |
|---|---|
| Causal loop diagrams | Native support with polarity |
| Decorations | Color/size by data attributes |
| Collaboration | Multi-user editing |
| Embedding | Embed maps in other sites |
Example map: Kumu Climate Change Map
Loopy - Interactive Causal Loops
Section titled “Loopy - Interactive Causal Loops”URL: ncase.me/loopy
Loopy is a minimalist tool for creating playable causal loop diagrams, created by Nicky Case.
| Feature | Description |
|---|---|
| Playable | Drag nodes to simulate changes |
| Simple | No learning curve |
| Educational | Great for explaining feedback loops |
Academic Literature
Section titled “Academic Literature”Visual Analytics for Causal Analysis
Section titled “Visual Analytics for Causal Analysis”“A Visual Analytics Approach for Exploratory Causal Analysis” (IEEE VIS 2020)
- Focus+context views for navigating large causal graphs
- Aggregation of similar causal paths
- Interactive refinement of causal hypotheses
“Visual Analysis of Multi-outcome Causal Graphs” (2024)
- Handling multiple effect variables
- Path comparison across outcomes
- Uncertainty visualization in causal relationships
Temporal Causality
Section titled “Temporal Causality”“DOMINO: Visual Causal Reasoning with Time-Series Data” (IEEE TVCG 2022)
- Progressive drill-down from overview to detail
- Temporal lag visualization
- Granger causality integration
LLM-Assisted Causal Modeling
Section titled “LLM-Assisted Causal Modeling”“CausalChat: Interactive Causal Model Development” (2024)
- Natural language interface for building causal models
- LLM suggests variables and relationships
- Human-in-the-loop refinement
Best Practices for Large Causal Graphs
Section titled “Best Practices for Large Causal Graphs”Progressive Disclosure
Section titled “Progressive Disclosure”| Level | Node Count | Features |
|---|---|---|
| Overview | 5-10 | High-level categories only |
| Expanded | 20-50 | Subcategories visible |
| Detailed | 50-200 | All individual factors |
| Full | 200+ | Complete model (rarely needed) |
Our implementation uses four levels: Overview → Interactive → Expanded → Detailed.
Semantic Zoom
Section titled “Semantic Zoom”As users zoom in, progressively reveal more information:
| Zoom Level | Shows |
|---|---|
| Far | Node shapes only, no labels |
| Medium | Labels appear |
| Close | Descriptions appear |
| Very close | Full metadata, inline charts |
Focus+Context
Section titled “Focus+Context”When a user selects a node:
- Highlight the selected node and its causal path
- Dim (but don’t hide) unrelated nodes
- Thicken edges in the causal chain
- Show edge labels on highlighted paths only
Our path highlighting implementation follows this pattern.
Handling Scale
Section titled “Handling Scale”| Technique | When to Use |
|---|---|
| Clustering | Group related nodes into expandable clusters |
| Fisheye distortion | Magnify focus area while compressing periphery |
| Mini-map | Always-visible overview for navigation |
| Search/filter | Let users find specific nodes |
| LOD rendering | Reduce detail at low zoom |
Comparison: Our Implementation vs. Best Practices
Section titled “Comparison: Our Implementation vs. Best Practices”| Best Practice | Our Status | Notes |
|---|---|---|
| Progressive disclosure | ✅ Implemented | 4 view levels |
| Expand/collapse clusters | ✅ Implemented | Interactive view |
| Path highlighting | ✅ Implemented | Click to highlight |
| Mini-map | ✅ Implemented | Expanded/Detailed views |
| Edge labels on hover | ✅ Implemented | Shows effect direction |
| Semantic zoom | ⚠️ Partial | Could add zoom-dependent detail |
| Feedback loops | ❌ Not supported | Dagre requires DAG |
| Temporal animation | ❌ Not implemented | Could show evolution |
| Search/filter | ❌ Not implemented | Would help at scale |
| Fisheye distortion | ❌ Not implemented | May not be needed |
Potential Enhancements
Section titled “Potential Enhancements”Based on this research, potential future improvements:
High Priority
Section titled “High Priority”- Semantic zoom - Show/hide descriptions based on zoom level
- Node search - Filter or highlight nodes matching a query
- Export to SVG/PNG - For presentations and reports
Medium Priority
Section titled “Medium Priority”- Loop annotation - Mark known feedback loops in description even if not rendered
- Time-based views - Show how causal relationships evolved
- Comparison view - Side-by-side different model versions
Lower Priority
Section titled “Lower Priority”- Fisheye lens - Magnify focus area (complex UX)
- 3D layout - For very large graphs (accessibility concerns)
- Playable simulation - Loopy-style “what if” exploration
Links & Resources
Section titled “Links & Resources”Tools (Free)
Section titled “Tools (Free)”- DAGitty - Statistical causal diagrams
- Loopy - Playable causal loops
- Kumu - Systems mapping (freemium)
Tools (Commercial)
Section titled “Tools (Commercial)”- Vensim - System dynamics (free PLE version)
- STELLA - Systems thinking
- KeyLines - Graph viz SDK
- yFiles - Enterprise graphs
Academic
Section titled “Academic”- IEEE VIS Conference - Top visualization venue
- Causal Inference in Statistics - Pearl’s textbook
Our Implementation
Section titled “Our Implementation”- Master Graph Viewer - Live implementation
- Cause-Effect Style Guide - Our conventions
- Source:
src/components/MasterGraphViewer.tsx,src/components/CauseEffectGraph/
Live Demos & Examples
Section titled “Live Demos & Examples”Our Implementation
Section titled “Our Implementation”Try these views of the AI Transition Model:
| View | URL | Features Shown |
|---|---|---|
| Overview | /diagrams/master-graph | High-level categories |
| Interactive | /diagrams/master-graph?level=interactive | Expandable clusters, path highlighting |
| Expanded | /diagrams/master-graph?level=expanded | Subcategories as nodes, mini-map |
| Detailed | /diagrams/master-graph?level=detailed | All factors (160 nodes) |
External Tool Demos
Section titled “External Tool Demos”| Tool | Demo Link | What to Notice |
|---|---|---|
| DAGitty | dagitty.net/dags.html | Causal path coloring, adjustment sets |
| Loopy | ncase.me/loopy | Playable simulations, simple interface |
| Kumu | Hawaii Missile Crisis Map | Rich node decorations, clustering |
| KeyLines | Cambridge Demos | Time-based, large-scale graphs |
| yFiles | Organization Chart Demo | Hierarchical layouts, expand/collapse |
Example Causal Diagrams
Section titled “Example Causal Diagrams”Systems Dynamics Examples:
- Limits to Growth Model - Classic world model on InsightMaker
- Beer Game - Supply chain dynamics
- Predator-Prey - Classic feedback loop example
Causal Inference Examples:
- DAGitty Examples - Confounding, mediation, selection bias
- ggdag R Package Gallery - Statistical DAG examples
Appendix: Tool Screenshots
Section titled “Appendix: Tool Screenshots”Our Implementation - AI Transition Model

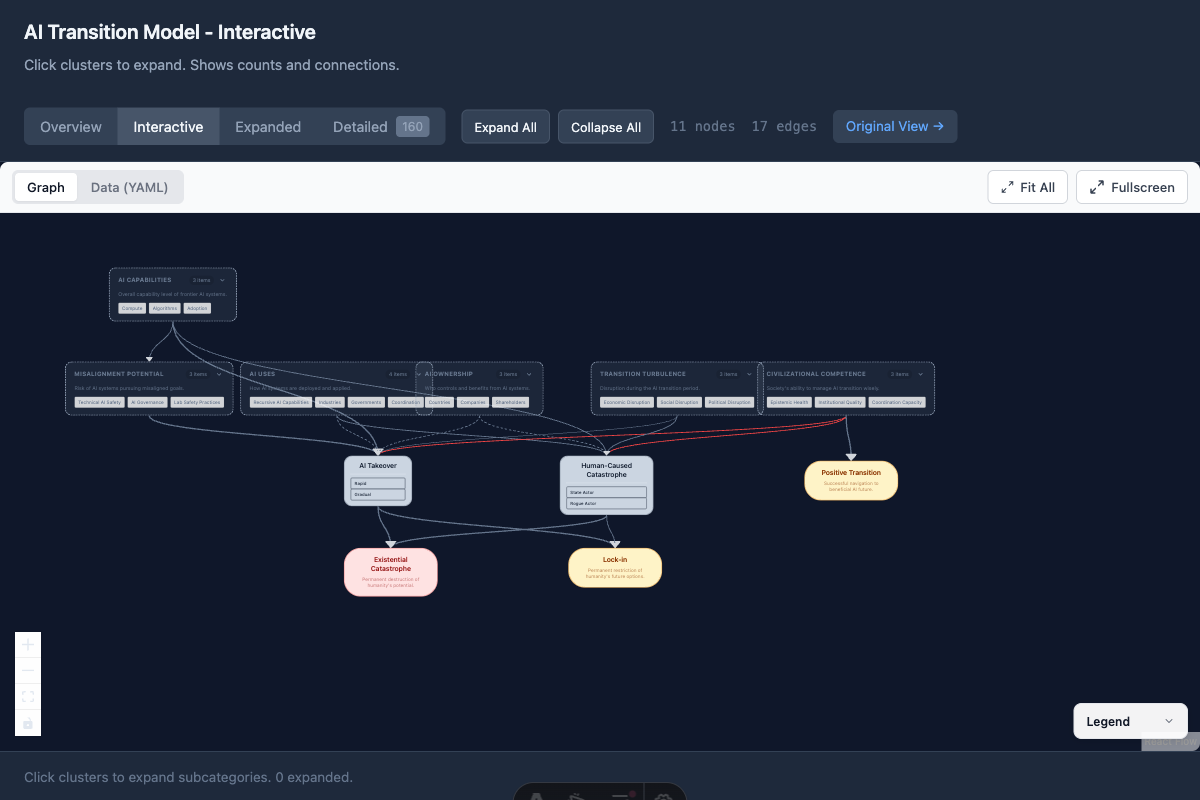

Section titled “Our Implementation - AI Transition Model”The interactive master graph view showing expandable clusters and causal connections between AI factors and outcomes.
Features shown:
- Expandable cluster nodes (AI Capabilities, Misalignment Potential, etc.)
- Color-coded outcomes (Existential Catastrophe, Lock-in, Positive Transition)
- Edge styling indicating relationship types
- Expand All / Collapse All controls

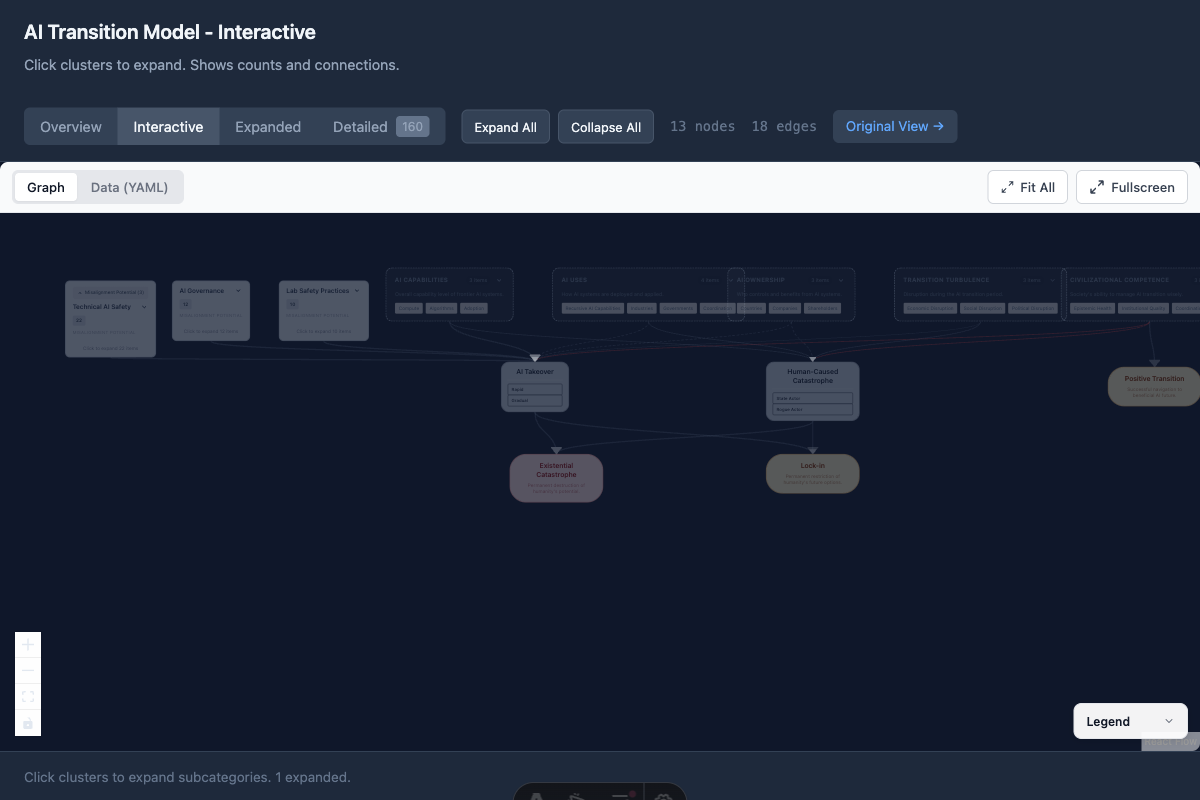

With a cluster expanded (Misalignment Potential → Technical AI Safety, AI Governance, Lab Safety Practices):
DAGitty Interface

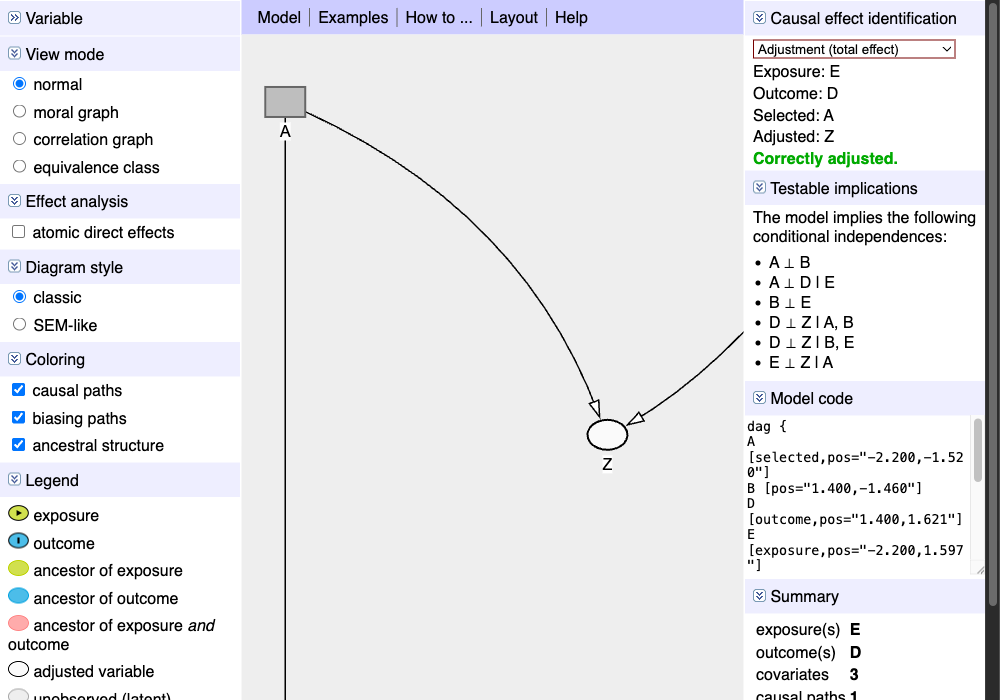

Section titled “DAGitty Interface”The DAGitty editor showing a causal diagram with exposure (E), outcome (D), and confounders. Note the automatic identification of adjustment sets and testable implications on the right panel.
Key features visible:
- Variable type indicators (exposure, outcome, ancestor)
- Causal path highlighting (green line from E to D)
- Statistical independence implications
- Model code export
Loopy Interface

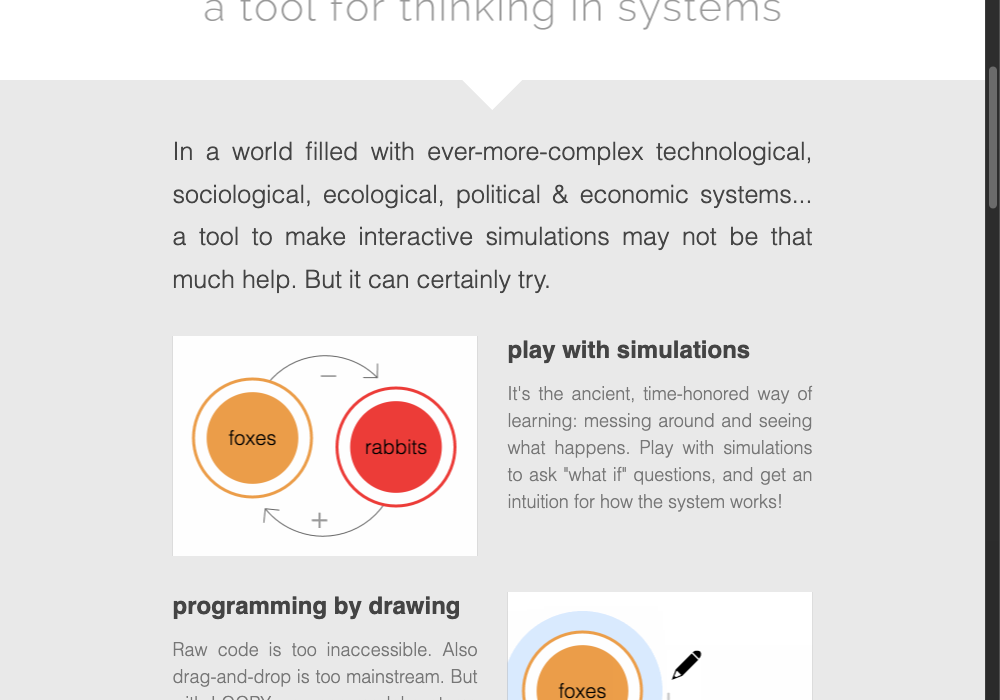

Section titled “Loopy Interface”Loopy uses a simple sketch-based interface where users draw nodes (circles) and connections (arrows). The key innovation is that diagrams are “playable” - drag a node up/down to see effects propagate through the system.
Key features:
- Direct manipulation (drag nodes)
- Polarity indicators (+/-) on edges
- Real-time simulation
- Zero learning curve
Vensim Causal Tracing
Section titled “Vensim Causal Tracing”Vensim’s Causal Tracing® feature allows clicking any variable to highlight its entire causal ancestry. This directly inspired our path highlighting implementation.
Key insight: The ability to trace “what affects this variable” is crucial for understanding complex models. Our implementation uses BFS to find all upstream and downstream nodes.
Note: Vensim is desktop software - visit vensim.com to download the free PLE version.
Kumu Systems Map
Section titled “Kumu Systems Map”Kumu specializes in stakeholder and systems mapping with rich decoration options:
- Node size by importance/influence
- Node color by category
- Edge thickness by strength
- Clustering and grouping
Example: Hawaii Missile Crisis Stakeholder Map - visit this live example to see Kumu’s interactive features.
References
Section titled “References”- Pearl, J. (2009). Causality: Models, Reasoning, and Inference. Cambridge University Press.
- Sterman, J. (2000). Business Dynamics: Systems Thinking and Modeling for a Complex World. McGraw-Hill.
- Wang, J. et al. (2020). “A Visual Analytics Approach for Exploratory Causal Analysis.” IEEE VIS.
- Zhang, Y. et al. (2022). “DOMINO: Visual Causal Reasoning with Time-Series Data.” IEEE TVCG.
- Kim, S. et al. (2024). “Visual Analysis of Multi-outcome Causal Graphs.”
